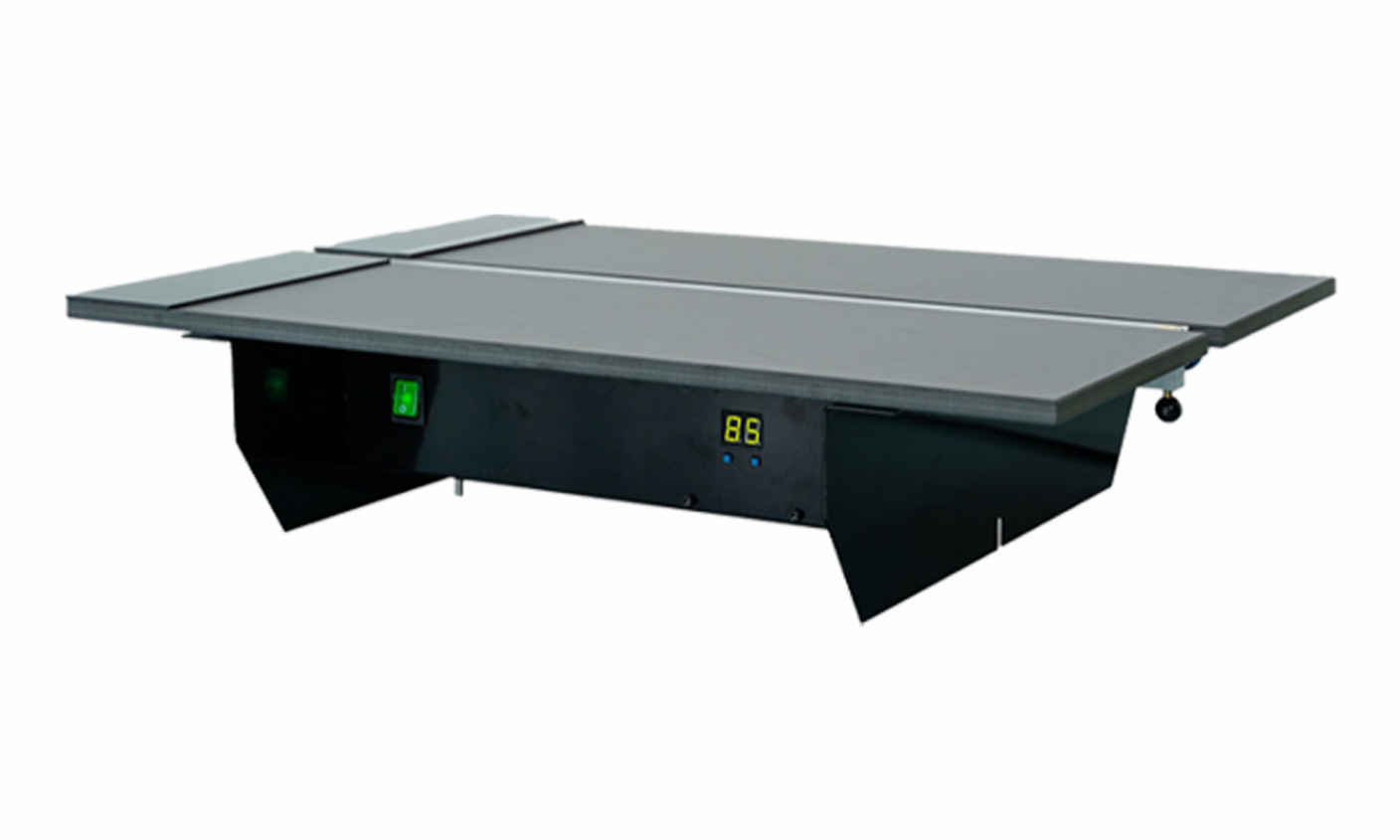

Shannon HR50 Plastic Bending Machine
Our Shannon HR50 Plastic Bending Machine was generously financed by Sparebankstiftelsen DNB
Shannon HR50 uses heating wire to make plastics malleable. It is a strip heater thus its used to bend plastics in a straight line. We intended to use this machine as a accessory to our laser cutter
Risk Assessment
| Hazard | Likelihood(1-5) | Consequence (1-5) | Risk Rating (L x C) | Risk Level |
|---|---|---|---|---|
| Burn injuries | 3 (possible) | 3 (moderate) | 9 | Moderate risk |
| Inhalation of toxic, harmful and or corrosive fumes | 2 (unlikely) | 5 (severe) | 10 | Moderate risk |
| Starting a fire | 1 (rare) | 5 (severe) | 5 | Moderate risk |
Required Safety Equipment
None
Hazards
| During normal operation | When using inappropriate material or if material is overheated |
|---|---|
 |  |
 | |
 | |
 | |
 |
Operational Safety
- Do not use the machine unless you know how to use it. For instruction, contact Sonen staff at ifi-sonen@ifi.uio.no.
- Do not touch the heating wire during operation.
- Do not touch the heated plastic.
- The plastic bending machine is never to be left unsupervised during operation.
- Do not move the cutting head while the machine is turned on.
- Do not move the machine during operation.
- Power off the machine when you are done.
- If your material turns dark, emits smoke or starts to buble. Remove your material at once!
- Only use this machine with thermoplastics such as:
- Acrylic PMMA
- Polystyrene
- Polycarbonate
- PETG
- PET
- ABS
Standard Operating Procedure
- Figure out the temperature required to bend your plastic.
- Set appropriate temperature.
- Adjust the backstop so the bend line lines up with the heating wire.
- Once the press has reached the desired temperature, position the plastic on the work area.
- Wait until the plastic becomes malleable.
- Bend your thing.
- Turn off the machine and tidy up after you.
