Location
The spectrometer is located in Room V170 in the Chemistry Building.
phone: (+047) 228 55 765
Use
The instrument is mainly used by Professor Eddy W. Hansen and his students.
Technical information
Inserts: 10mm tubes

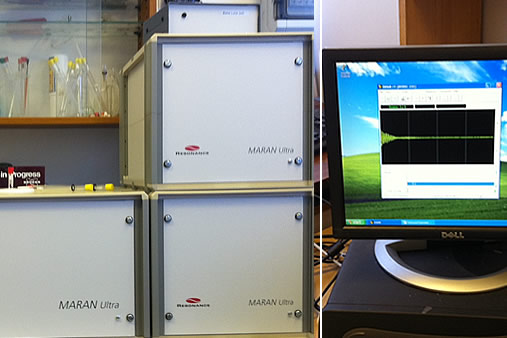

Magnet: Maran Ultra magnet with a magnetic field of 0.5 T
Transmitter: 300W RF
Temperature variable from -50 to +130 Degree Celsius.
Gradients: Crown Macrotech 5000VZ 60A gradient power supply, max gradient strength 400gauss/cm (4T/m).
T1rho: Maran Ultra power level controller and power supply to provide 40kHz spin locking pulses up to 1 second.
Computer: Dell Optiplex DX60 1.70GHz, memory, 18.6Gb hard disk, CD-ROM player
Software: Microsoft Windows XP, RINMR ver 4.1.1.10 Resonance instruments Ltd
Acknowledgement
The installation was financed by The University of Oslo and SINTEF.
